Produktdetails:
Zahlung und Versand AGB:
|
| Stifte der OBD2-Männlichen Steckdose: | mit einer Breite von nicht mehr als 30 mm, | Endgeräte des weiblichen OBD2-Anschlusses: | mit einer Breite von nicht mehr als 30 mm, |
|---|---|---|---|
| Fiat OBD2 weiblicher Stecker: | Äquivalent des ursprünglichen | Gemeinsamer OBD2-weiblicher Stecker: | Standard, mit KET-Terminals |
| Prüfungen: | 100% offen, Kurzschluss und Verlustdrahtprüfung | Prüfungsspannung: | DC300V 5M ohm/10ms |
| Hervorheben: | obd splitter cable,obd2 y cable,obd cable splitter with gps connector |
||
OBD 2 OBD2 Splitter Y Cable With GPS OBDII Connector for Nissan Cars
Specification
| OBD2 male plug | standard, 12V/24V |
| Pins of OBD2 male plug | copper, nickel-plated or gold-plated |
| Overmold of OBD2 male plug | straight |
| Fiat OBD2 female connector | equivalent of the original |
| Common OBD2 female connector | standard, with KET terminals |
| Terminals of OBD2 female connectors | copper, nickel-plated or gold-plated |
| Overmold of OBD2 female connector | straight |
| Material of overmolded part | PVC |
| Cable shape | round |
| Wire | 26AWG, pure copper |
| Material of OBD2 male and female connectors | PA66 |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and miss-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |

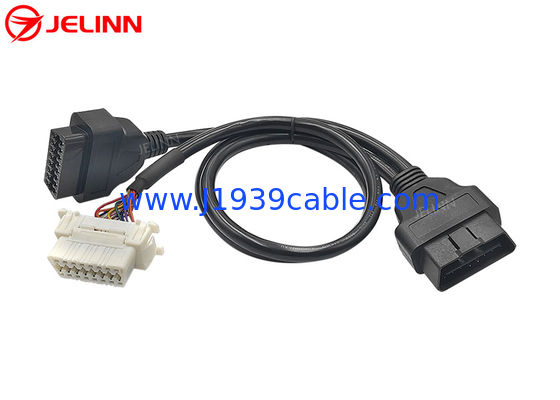

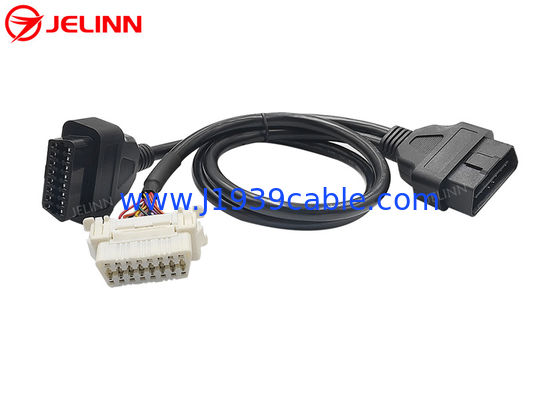

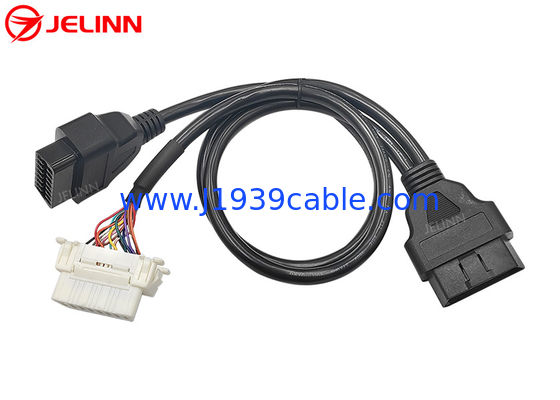

This is a Y cable with 3 ends of an OBD2 male plug, a replacement Fiat OBD2 female connector and a common OBD2 female connector.
There is a gap on the baffle in the middle of the OBD2 OBDII male plug. This kind of OBD2 male plug can be connected to OBD2 female ports of 24V/12V vehicles.
Pin assignment or pin out
The pin assignment or pin out can be like this:
| OBD2 male plug | Fiat OBD2 female connector | common OBD2 female connector |
| 1 | 1 | / |
| 2 | 2 | 2 |
| 3 | 3 | / |
| 4 | 4 | / |
| 5 | 5 | 5 |
| 6 | 6 | 6 |
| 7 | 7 | 7 |
| 8 | 8 | / |
| 9 | 9 | / |
| 10 | 10 | 10 |
| 11 | 11 | / |
| 12 | 12 | / |
| 13 | 13 | / |
| 14 | 14 | 14 |
| 15 | 15 | 15 |
| 16 | 16 | 16 |
There are 8 pins wired, so there are 8 wires of 26AWG in the round cable from OBD2 male plug to common OBD2 female connector. All 16 pins of OBD2 male plug to Fiat female connector are wired, so there are 16 wires of 26AWG in the cable from OBD2 male plug to Fiat OBD2 female connector.
The pin assignment or pin out can also be like this:
| OBD2 male plug | Fiat OBD2 female connector | common OBD2 female connector |
| 1 | 1 | 1 |
| 2 | 2 | 2 |
| 3 | 3 | 3 |
| 4 | 4 | 4 |
| 5 | 5 | 5 |
| 6 | 6 | 6 |
| 7 | 7 | 7 |
| 8 | 8 | 8 |
| 9 | 9 | 9 |
| 10 | 10 | 10 |
| 11 | 11 | 11 |
| 12 | 12 | 12 |
| 13 | 13 | 13 |
| 14 | 14 | 14 |
| 15 | 15 | 15 |
| 16 | 16 | 16 |
As to this pin out, all 16 pins of the OBD2 OBD male and female connectors are wired, so there are 16 wires of 26AWG in both round cables.
Application
This Y cable is used to connect telematics, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' OBD2 female diagnostic ports.
This OBD2 OBDII Y Cable allows port relocation or connection of multiple telematics or IoV devices. Take the original Fiat OBD2 female diagnostic port off its original location with tools if necessary and then insert the OBD2 male plug at the end of this OBD2 Y cable into the original Fiat OBD2 female diagnostic port. Install the replacement Fiat OBD2 female connector at one end of the Y ends back to the original location of the OBD2 female diagnostic port in the car. Then you can connect a telematics or IoV device to the common OBD2 female connector at the other end of the Y ends. You can also connect another telematics or tuning device to the OBD2 female connector which was installed at the original location or leave this OBD2 female connector available for diagnostic use in the future. If you leave replacement Fiat OBD2 female connector available and then hide the telematics or IoV device connected to the common OBD2 female connector, then nobody would know that you have installed these devices without opening the panel.
Sending an inquiry
If you haven’t found or don’t have time to look for the OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
